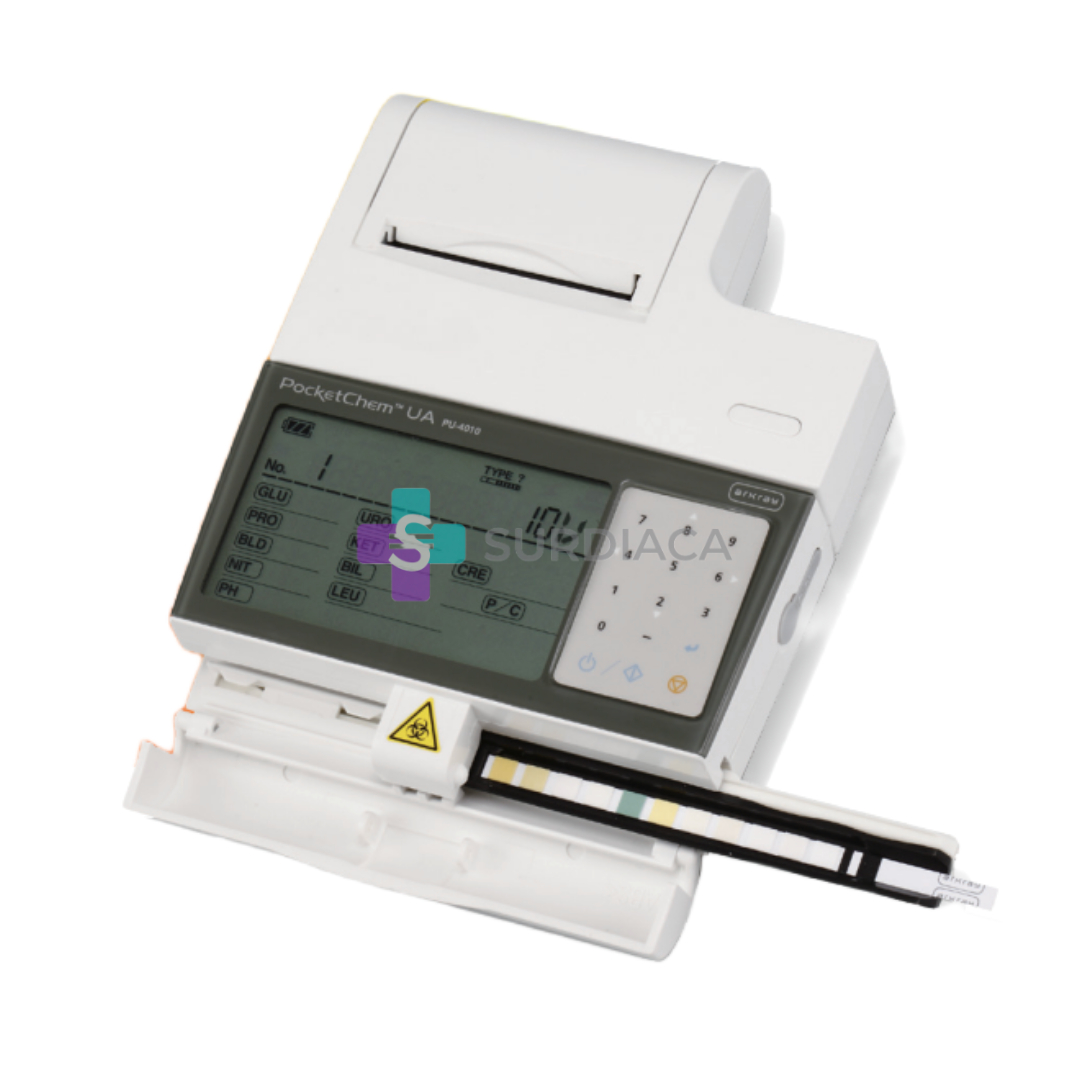

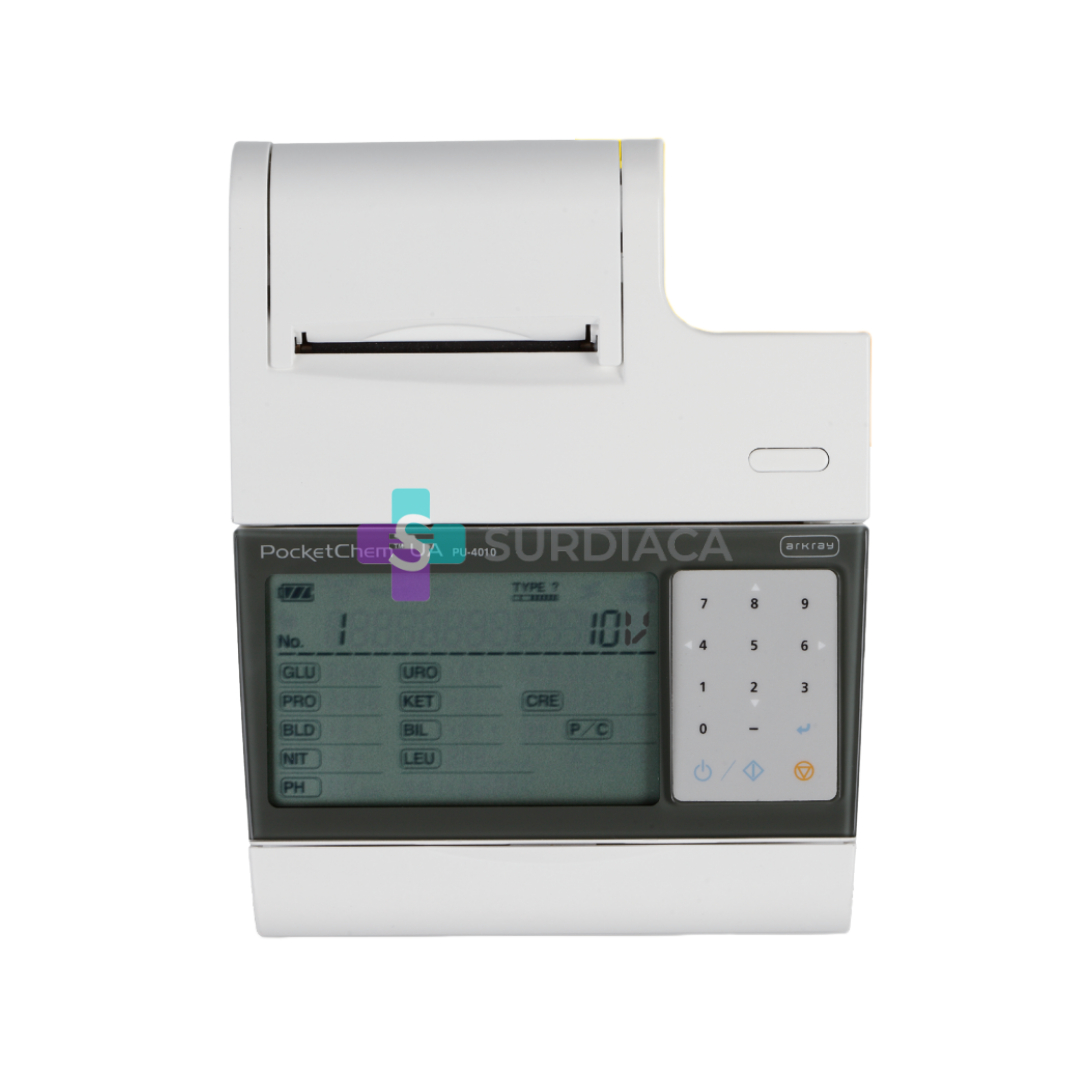

ARKRAY PocketChem UA | Urine Analyzer

Multiple Functions
Colored urine correction, temperature correction and Specific Gravity correction based on pH.
Palm-sized meter driven by two batteries
The meter is detachable from the printer. The meter is really portable and mobile. It can easily be placed near patients.
Easy operation and daily maintenance
Just press the start key, and dip and place the test strip on the meter. For daily maintenance, clean the test strip holder only.
Highly reliable test results with Creatinine correction
Even with the use of spot urine, test results are highly reliable and are not affected by urine dilutions or concentrations. The P/C ratio or A/C ratio is effective for the screening of renal diseases.

Categories: ALL, CLINICAL MICROSCOPY

Description

Measurement objects: Urine
Test strip: AUTION Sticks 10V
Measurement items: GLU, PRO, BIL. URO, S.G., BLD, pH, KET, NIT, LEU, CRE and ALB
Measurement principle: Dual wavelength reflectance method
Sample supply method: Manual dipping
Processing speed: 50 tests/ hour
Reaction time: About 60 seconds/test
Display: Custom liquid crystal display
Memory capacity: 100 tests
External output: Compliant with RS-232C
Measurement environment:
Temperature: 10 – 30° C
Humidity: 20 – 80% RH (non-condensing)
Dimensions: 124 (W) x 81 (D) x 36 (H) mm
Weight: 180 g (without batteries)
Power supply: Two AA Alkaline batteries or AC adapter
Power consumption: 3W
Printer: Thermal recording printer
Printer Paper: Thermal paper (W58 mm x o 26 mm)
Dimensions: 125 (W) × 133 (D) x 36 (H) mm
Weight: 180 g (without printer paper)
Power Supply: AC adapter
Power Consumption: 20W
Connection with Meter: One-touch connection (with easy lock function)
